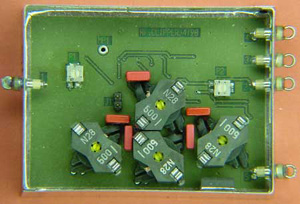

NF - Clipper for Stroke Limitation of FM-Transmitters |
|
The low frequency clipper is designed for the stroke limitation of FM-transmitters. By implementing a 12,5 kHz raster with radio equipment developed and built for a 25 kHz raster, the peak gain is often too high. Peak gain is limited by clipping the low frequency signal followed by rampant-edge filtering. Thus, the average audio gain can be raised while the peak gain is limited. |
|
![]() |
Input and output impedance 600 Ohm |
![]() |
Entrance level 0 dBm (adjustable) |
![]() |
Notch filter for 1750 Hz |
![]() |
Low pass filter - 3dB 3,8 kHz / - 60dB 4,2 kHz |
![]() |
Output level 0 dBm (adjustable) |
![]() |
Second output - 20dBm |
![]() |
With input stroke > 5 kHz, back regulation of the output level |
No longer available |
|
![]() |
