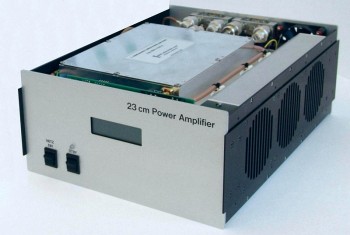

13 + 23 cm POWER AMPLIFIER

Technical Data:

Frequency range:

2320 - 2350 MHz / 1240 1300 MHz

Mode of operation:

SSB, CW
at FM and ATV max. temp. 55 C !!!

Input power:

13 cm Version    Pin > 15 Watt
23 cm Version 1 Pin > 15 Watt
23 cm Version 2 Pin = 0,5 Watt max. 1 W

Output at 50 Ohm:

13 cm Version    Pout = 200 Watt
23 cm Version 1 Pout = 200 Watt
23 cm Version 2 Pout = 200 Watt

Saturation power:

type 220 W

Input S11:

type 10dB

Maximal SWR of Load:

2,5 : 1

Maximum cooling element temperature:

55 C

Operational voltage:

230 V AC ( 160 250 V AC)

Power mode correction:

passive with LC Filters

Power consumption:

approx. 600 VA at full conduction

Input and output jacks:

N standard

Insertion loss at stand-by:

<0,3 dB

PTT-Activity:

Contact in countercurrent with matter ( < 0,5 V )
5pol-DIN jacks Pin 2 dimensions
Pin 3 PTT-Signal

Total weight:

approx. 8,5 kg

Dimensions:

123 x 243 x 340 mm

Price:

Our High Power Amplifiers will no longer be produced
if there are any questions about them, please do not hesitate to connect us via phone or email.
