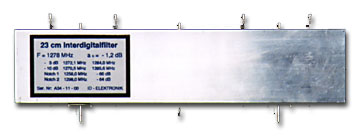

23cm Inter-digital Filter
Frequency band: 1240 - 1300 MHz (Please specify frequency when placing order) |
|
Bandwidth (-3dB): type 12 MHz |
|
Insertion Loss: typical 1 dB |
|
2 notches in a distance of 20 MHz from the middle frequency, adjustable |
|
Notch depth > 60 dB |
|
N Connector |
|
Completely constructed and adjusted 80,- € |
|

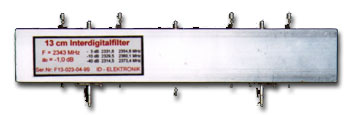

13cm Inter-digital Filter |
|
Frequency band: 2320 - 2450 MHz (Please specify frequency when placing order) |
|
Bandwidth (-3dB): type 25 MHz |
|
Insertion Loss: typical 1 dB |
|
2 notches in a distance of 35 MHz from the middle frequency, adjustable |
|
Notch depth > 60 dB |
|
N Connector |
|
Completely constructed and adjusted 80,- € |
|

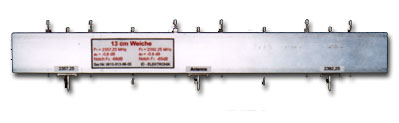

Duplexer for 13 cm and 23 cm |
|
13 cm Version |
|
Frequency band: 2320 - 2450 MHz (Please specify frequency when placing order) |
|
Bandwidth (-3dB): type 25 MHz |
|
RX/TX spacing: 35 MHz |
|
Insertion Loss: typical 1 dB |
|
Notch depth: > 60 dB |
|
Decoupling RX/TX: > 60 dB (type 65 dB) |
|
N Connector |
|
Completely constructed and adjusted 150,- € |
|
23 cm Version |
|
Frequency band: 1240 - 1300 MHz (Please specify frequency when placing order) |
|
Bandwidth (-3dB): type 12 MHz |
|
Insertion Loss: typical 1 dB |
|
Decoupling RX/TX: >60dB (type 65dB) |
|
N Connector |
|
Completely constructed and adjusted 150,- € |
|
