Power supply: 12 - 15 V DC
Connections:
HF Out: N jack
VIDEO-In: Cinch
NF-In: Cinch
Supply: 4 pol-DIN
Built in an aluminum case: 225 x 175 x 55 mm
(10GHz Version 175 x 175 x 55 mm)
Delivery incl. tension provision cable and documentation

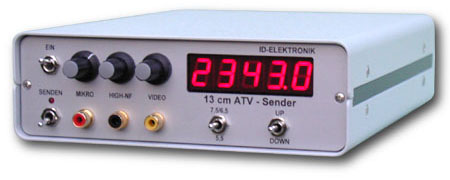

ATV Complete Transmitter
ATV transmitters come ready to use and will be assembled with the proper components according to the frequency range:
Frequency band: |
1240 - 1300 |
2320 - 2450 |
2500 - 2625 |
3400 - 3475 |
5650 - 5850 |
Assembly: |
BBA 2.5 |
BBA 2.5 |
BBA 2.5 |
BBA 2.5 |
BBA 2.5 |
TX 23 |
TX 13 V1 |
TX 13 V2 |
TX 1,7 |
TX 1,4 |
|
PA 23-2 |
PA 13-1 |
- - - - - |
2 facher |
4 facher |
|
Output: |
2 W |
1,5 W |
0,15 W |
0,2 W |
0,2 W |
Display e.g.: |
1278,0 |
2343,0 |
10220 |
3400,0 |
5740,5 |
Price: |
No longer available |
No longer available |
No longer available |
No longer available |
No longer available |
The following specifications apply to all transmitters:
|
Power supply: 12 - 15 V DC |
|
Connections: |
|
Built in an aluminum case: 225 x 175 x 55 mm |
|
Delivery incl. tension provision cable and documentation |
(…..other versions available upon request)
