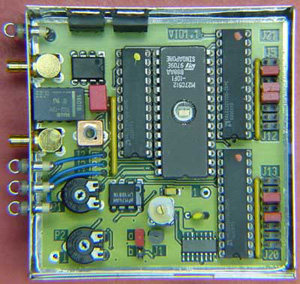

Video Logo VID 1

Keyboard entry into the picture (black and white)

Can switch between 8 different tenors via DuKo´s

256 pixels per line, 8MHz pixel clock

128 lines per half image

Software to convert an EPROM file out of a bitmap file

All connections in SMB

Construction primarily in SMD

Dimensions 74 x 74 x 30 mm

Power supply 11 - 15 V DC

Completely constructed 145,- €
