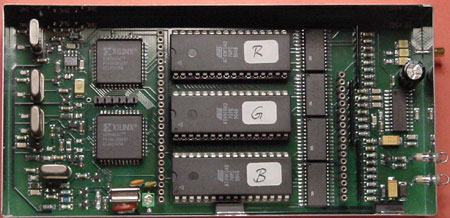

TBG 4 Test Pattern Generator (! NEW !)

FBAS- standard signal 1 Vss

Temperature constant oscillator using heated quartz (40C) ( ! NEW ! )

Video timing and pixel clock derived from a quartz oscillator

Coupled Burst ( ! NEW ! )

767 pixels by 575 lines (visible pattern)

Software to generate EEPROM files out of bitmap files

Storage of 2 patterns ( ! NEW ! )

FBAS connection via SMB jack

Construction primarily in SMD

Dimensions 74 x 148 x 30 mm

Power supply 12 15 V DC

Current consumption 280 mA, with TBG 8 approx. 360 mA (first 10 seconds approx. 500 mA)

Upgradeable using an attached board for higher resolution ( 3 x 8 bit color depth ) ( ! NEW ! )

Base version with 3 x 4 bit and 2 patterns, completely constructed 260,- €

TBG 8
Extension assemblies with 3 x 8 bit and 2 patterns.

Completely constructed 72;- €


Due to the cancellation of components, the previous Test Pattern Generator 1 TBG1) unfortunately cannot be delivered anymore. The previous extension board for a second pattern on TB1 is still available for 50,- € completely constructed.
