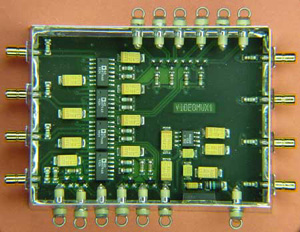

Video Multiplexer |
|
This multiplexer can be realized by using multiplexer components with a 250 MHz bandwidth and an isolation of more than 80 dB at 5 MHz. |
|
![]() |
4 inputs, 4 outputs |
![]() |
Each input can be switched to each output |
![]() |
Decoupled configuration arrangement > - 60 dB |
![]() |
Inputs and outputs SMB |
![]() |
Constructed in tin plate housing 55 x 74 x 30 mm |
![]() |
Input and output impedance 75 Ohm |
![]() |
Power supply 8 - 15 V DC |
Completely constructed 140,- € |
|
![]() |
|
