Video Enhancer (Video Restorer)

Edge enhancement is achieved by differentiating twice on the positive and negative edges of black/white and white/black transitions. The picture is thus sharper. Levels can be increased up to double the standard burst amplitude. The video signal loops through without strain.

Inputs and outputs: SMB

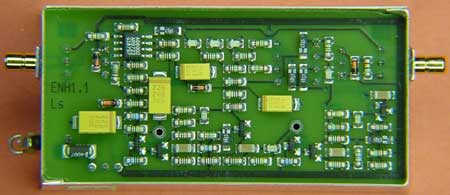

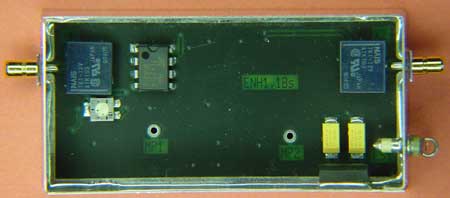

Constructed in tin plate housing 37 x 74 x 30 mm

Input and output impedance 75 Ohm

Power supply: 11 - 15 V DC

Completely constructed 80,- €
