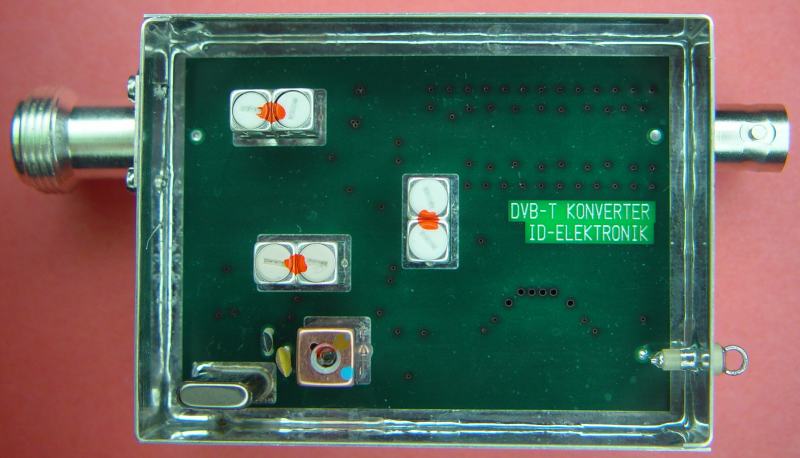

DVB-T Converter

Up to now DATV-relays were mostly assembled in DVB-S, enabling reception only by means of an external pre-amplifier. Now, in the era of digital terrestrial televison the first DVB-T relay was introduced.The frequency range of a DVB-T receiver is limited to 858 MHz, therefore the use of a converter is necessary.

Input Frequency

1288 MHz

Output Frequency

Channel 27 (522MHz)


ca. 12 dB

Noise figure

type 5 dB

Power supply

11-15 V DC / 80mA


55 x 74 x 30 mm

Completely constructed
