13 cm Antennas

13 cm antenna model 13-15

13 cm antenna model 13-20

Frequency band

2320 - 2450 MHz

2320 - 2450 MHz

Gain over dipole

15 dB

20 dB

Adjustment to 50 Ohm

< 1,5

< 1,5

3 dB - opening angle

14°

7,5°

Front - back ratio

> 23 dB

> 30 dB

HF - Connection

N - Connector

N - Connector

Max. performance

50 Watt

50 Watt

Dimensions

410 x 510 x 385 mm

610 x 920 x 385 mm

Weight

1,25 Kg

2,45 Kg

Polarization according to assembly

horizontal / vertical

horizontal / vertical

Wind load

Wind load 110 N

Wind load 280 N

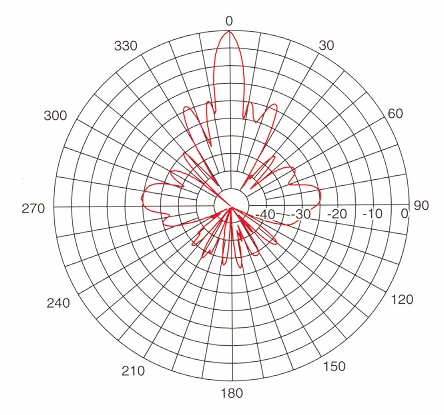

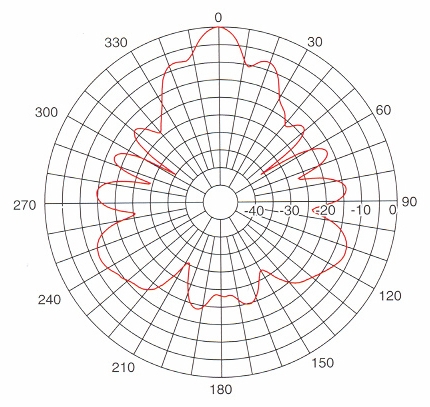

Radiation chart


Download chart


Download chart

Price

No longer available

No longer available
